RainScreen For Use Behind Stucco, EIFS, Manufactured Stone and more! EnkaWall Drain D 6P1 Plus

EnkaWallDrain D 6P1 Plus- A superior rainscreen for ventilation and drainage

It's an alternative to EnkaDrain 9714.

EnkaWallDrain combines Enka and Lutradur® technologies to provide proven performance in the construction industry, resulting in superior products that are installer

friendly. The WallDrain is a rain screen product for use behind traditional stucco, EIFS, manufactured stone, fiber cement and metal panel applications. The product’s 3D design provides a drain path and ventilation for incidental moisture between exterior wall finish materials and weather barrier sheathing. This product is designed for commercial or residential applications. Low & Bonar’s 3D matrix technologies have been used for decades as a ventilation and drainage medium for the building industry.

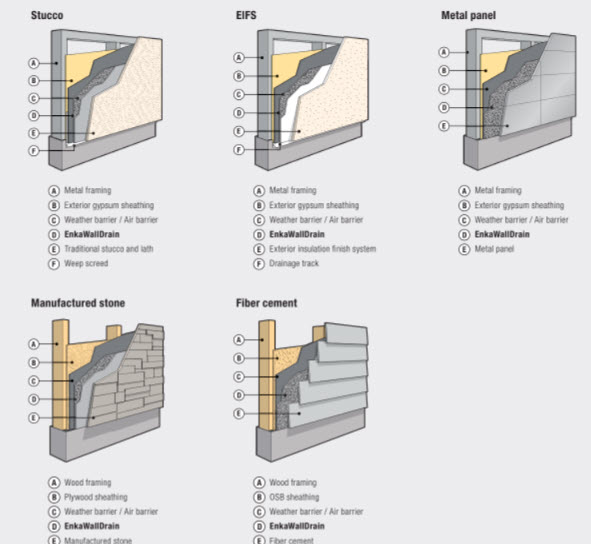

Rainscreen & Facade Ven EnkaWallDrain D 6P1 Plus Applications

 Stucco

 Thin Brick or Stone

 EIFS (exterior insulation and

finish system)

 Wood Siding

 Fiber Cement Siding

EnkaWallDrain D 6P1 Plus Delivers

Continuous ventilation and drainage removing incidental moisture.
Redirects and draws moisture away from vulnerable wall sheathing materials
Confirms to irregular surfaces and corners with complete and effective coverage
Provides 100% coverage of wall area
Filter fabric assures drain path remains completely clear of stucco or mortar
Designed to create open flow path even at excess pressure
Dimensionally stable in hot weather
Not brittle in cold weather

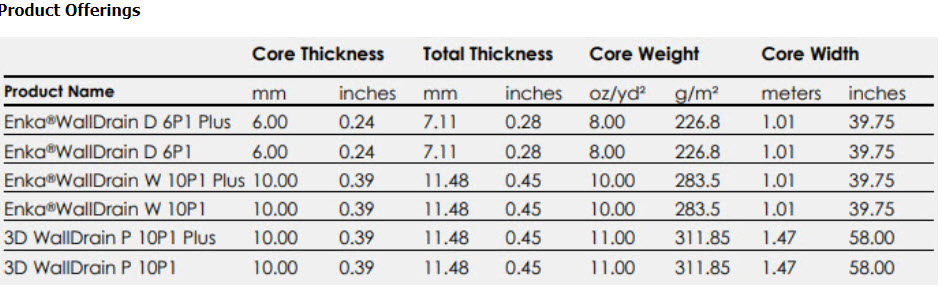

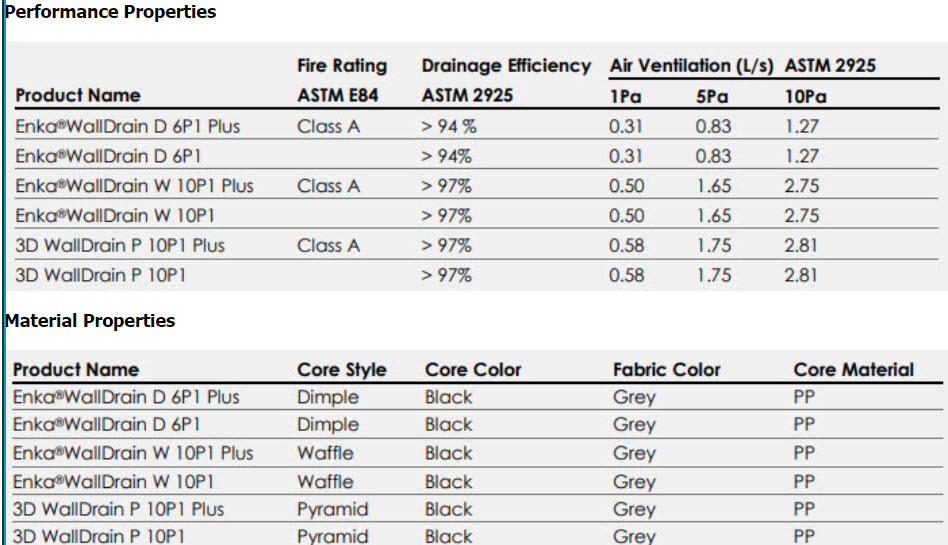

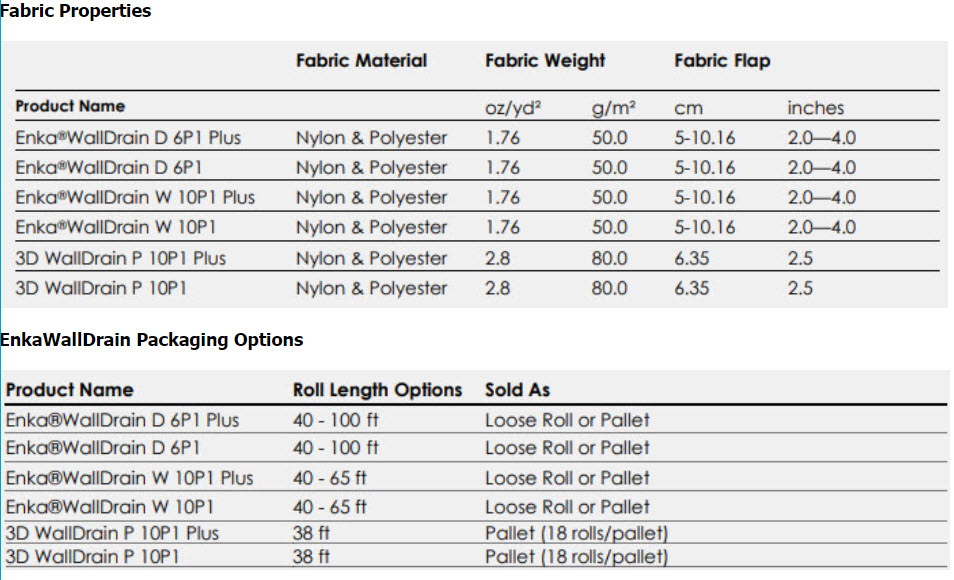

Enka WallDrain Technical Data

Comparative Compression Results for Enka WallDrain

Thickness Under Load Comparatives- 6mm

To the best of our knowledge, the information contained herein is accurate. However, Global Plastic Sheeting cannot assume any liability
whatsoever for the accuracy or completeness thereof. Final determination of the suitability of any information or material for the use
contemplated, of its manner of use and whether the suggested use infringes any patents is the sole responsibility of the user.
These products may be covered by patents or patents pending.
