Erosion Control-Shorelines, Channels, Steep Slopes-

Enkamat R45-

Shoreline Stabilization and Erosion Control Requires a High-Performance Geosynthetic

Enkamat® R45 is a unitized high-performance geosynthetic that incorporates a high tenacity polyester geogrid within the entangled filaments of the 3-dimensional turf reinforcement mat (TRM). The combination of a high-strength tensile member for reinforcement at low strains and the TRM for root entanglement provides unique properties for erosion control applications along shorelines, in channels, steep slopes and as a grip layer under vegetated veneers. Enkamat R45 is manufactured from nylon and polyester to eliminate the buoyancy factor associated with submerged conditions. Enkamat R45 replaces Enkamat S - the original High Performance TRM

 Enkamat R45 Recommended Applications

 Permanent erosion control for shorelines and green (vegetated) channels with expected shear stresses ≤ 20 psf and surficial stability for steep slopes (≤ 0.5H:1V).

 Support and enhance hydraulic and agronomic performance of ecosystem plants.

 Channel lining, shoreline or slope protection for erosion control applications with extreme hydraulic forces or where high modulus, high tensile strength is required.

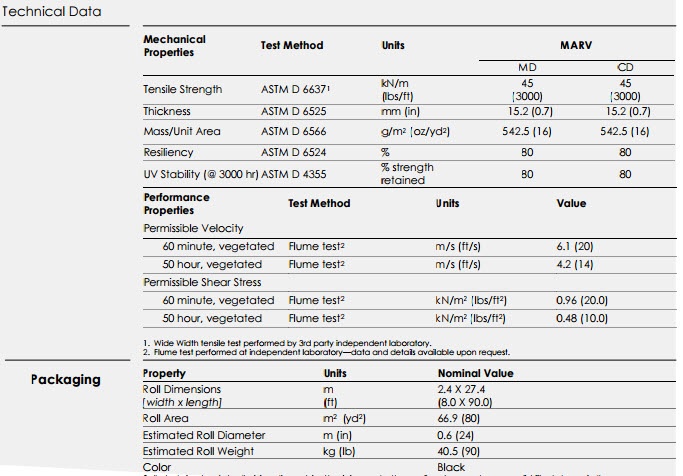

Enkamat R45 Specification Table:

How to Choose the Right Hight Performance Geosynthetic

Choosing the right high-performance geosynthetic for erosion control on steep slopes is crucial for long-term stability and preventing potential damage. Here are some key factors a consumer should consider:

Performance:

• Tensile Strength: High tensile strength is essential for the geosynthetic to withstand the pull of gravity and soil movement on steep slopes. Look for values exceeding 20 kN/m for robust performance.

• Permeability: Adequate permeability allows water to drain through the geosynthetic, preventing saturation and potential slope failure. Aim for a permeability rate of at least 1 x 10^-4 m/s.

• Friction Coefficient: Good friction between the geosynthetic and the soil helps anchor it in place and prevent slippage. Look for a friction coefficient exceeding 0.3 for steep slopes.

• UV Resistance: Exposure to sunlight can degrade geosynthetics over time. Choose a product with high UV resistance, especially for long-term projects.

Material:

• Fiber Type: High-tenacity polyester or polypropylene fibers are common choices for their durability and strength. Avoid natural fibers like jute or coir, which can degrade faster.

• Manufacturing Process: Needle-punched geosynthetics with a three-dimensional structure offer better soil anchoring and erosion control compared to woven or knitted options.

Specific Features:

• Root Reinforcement: Some geosynthetics have integrated geogrids or other features to promote vegetation growth, which further stabilizes slopes and reduces erosion.

• Seaming Compatibility: Ensure the chosen geosynthetic has compatible seams for proper installation and performance on complex slopes.

Additional Considerations:

• Slope Angle: Steeper slopes require more robust geosynthetics with higher tensile strength and friction coefficients.

• Soil Type: Different soil types may require specific geosynthetic properties for optimal performance. Consult a geotechnical engineer for recommendations.

• Environmental Regulations: Some regions have specific regulations regarding geosynthetic materials for erosion control. Check local regulations before purchase.

Remember, consulting a qualified geotechnical engineer or erosion control specialist is crucial for choosing the best high-performance geosynthetic for your specific needs and slope conditions. They can assess the factors mentioned above and recommend the optimal product for long-lasting and effective erosion control on your steep slopes. sk Global Plastic Sheeting your questions. We are here to help!
