Enkadrain 9120- Drainage for Underground Parking and more
Enkadrain 9120- The Drainage King!
Enkadrain 9120 is a drainage product that is used in underground parking, retaining walls, pavements and more. It has a wide variety of applications due to its nylon core of fused, entangled filaments and a geotextile bonded to one side. Nylon has excellent resistance to a variety of chemicals, alkalines, dilute acids, fuels and solvents commonly found on construction sites. It is amazingly lightweight while being very wear and abrasion resistant. Nylon has a high tensile strength and a high heat distortion temperature. It's an efficient polymer for the job. The roll size is, 39” x 100’.
Common Applications include ("Let it drain, let it drain, let it drain"):
- Underground parking
- Commercial buildings
- Interior and Exterior Planters
- Retaining Walls
- Pavements
- Commercial buildings
Why Select Enkadrain 9120?
- Protects waterproofing during and after back-fill
- Excellent durability
- Conforms to irregular surfaces and corners with complete and effective coverage
- Long rolls allow for reduced installation costs by eliminating interlocking and excessive seams
- Continuous drain flow even under high loads
- dimensional stability in hot weather and not brittle in cold
- Geometric structure creates safe flow path even during backfill
|
Roof Gradient |
Problems |
Solutions |
|
Flat <1° (<2%) |
· Ponding water on roof and in growing substrate can lead to root rots, poor growth and plant failure |
· Use high profile Enkadrains (0.6”) to lift growing substrate and plants above ponding water |
Additional Options for Enkadrains on Sloped Green Roofs
Technical Data and Physical Properties:
Flow Rates of Enkadrain 9120:

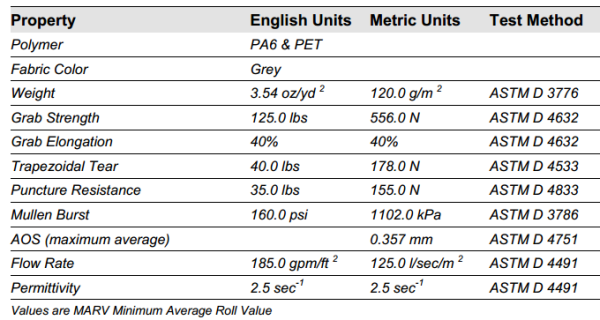

Enkadrain 9120 Fabric Properties

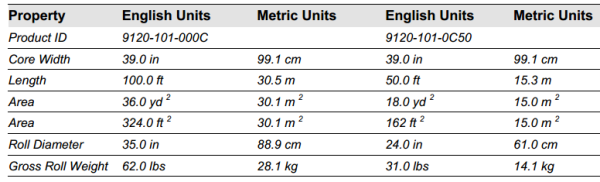

Packaging Properties
To the best of our knowledge, the information contained herein is accurate. GPS cannot assume any liability whatsoever for the accuracy or completeness thereof. It is the responsibility of the user to determine the suitability of any information or material for the use contemplated and its manner of use.
