Enkadrain 3807 Thin Drainage Mat/ Composite

Enkadrain 3807 is a new thin drainage composite which is part of the Enkadrain family of products. It consistent of a black UV resistant polypropylene drainage core and a strong 80 gram grey Colback fabric bonded to the soil facing side and a lighterv50 gram grey Colback fabric thermally bonded to other side.  The lighter fabric can be embedded into uncured water-proofing to attach to the wall. The U groove entangled filament configuration is protected from UV degradation for 60 days.

Enkadrain 3807 Recommended Applications

• Residential Foundation Walls
• Concrete plaza decks
•  Concrete balconies

Features and Benefits

• Excellent durability
• Continuous flow in all directions, even under high loads
• Protects waterproofing during construction
• Embeds and bonds to uncured waterproofing
• Conforms to irregular surfaces and corners
• Long rolls reduce installation costs by reducing butt seams and eliminating interlocking
• 3” fabric overlap flap on both front a back fabrics

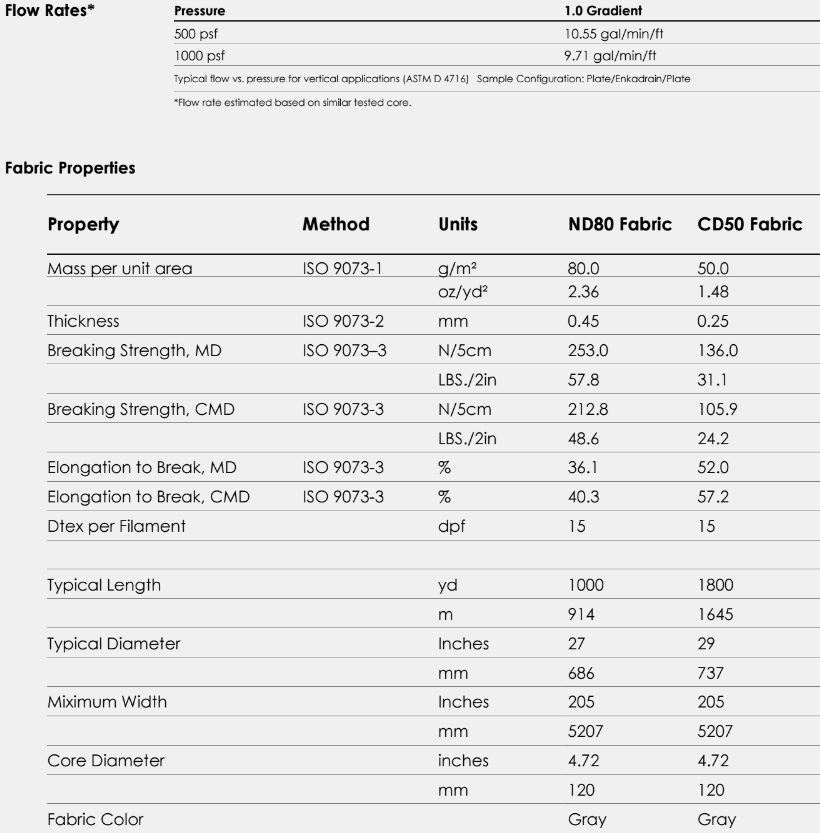

Enkadrain 3807 Technical Data
