GPS Heat Shrink Tape- The Heat Shrink Wrap Tape
GPS Heat Shrink Tape was formulated to meet the demanding needs of Shrink Wrapping applications. This white tape is standard in 4” x 180’ and 2” x 180’. The 4” has pinked edges for easy hand tearing in the field. This tape adheres very strongly to heat shrink wrap polyethylene. We made this one to withstand the elements, so it adheres very well over a wide temperature range. This tape is highly water resistant, is strong and durable, while remaining flexible and conformable. Even though GPS Heat Shrink Tape was made for the shrink wrapping industry, this tape has found a home in many other industries such as: Construction, Aerospace, Automobile, Manufacturing, Crawlspace and Basement encapsulation, Agriculture, Industrial applications, Shipping and Containerizing.
If you need a high adhesion tape, this may be an excellent choice. To give you an idea how versatile this tape is, one of the Nation’s leading commercial construction companies recently replaced 15 tapes made for various purposes (including cold weather tape) with this tape, and say it outperforms each of the tapes it replaced and saves them a lot of money.
GPS Heat Shrink Tape conforms to surfaces and is flexible. It has a polyethylene film backing. The adhesive is rubber. GPS Heat Shrink Tape meets DPS 3.301 DPM #871-2.
Total Thickness: 8 mil Per ASTM D-1000
Tensile Strength: 21 lb/in Per ASTM D 1000
Adhesion to Steel: 60 oz/in Per PSTC-101
Operating Temperature: 40 to 200 degrees Farenheit
MVTR (96% RH,100 Degrees Farenheit) 0.112 perms Per ASTM D-3833
Elongation 70%
It is recommended that the GPS Heat Shrink Tape be stored between 40-60% humidity, at 60-80 degrees Fahrenheit.
TGM-3300 Buytl-Based Tape-Water-Proof!
TGM-3300 is a butyl-based tape that has a release liner on each side of the material. It is capable of bonding a variety of items together. TGM-330 stays flexible during its application but offers an aggressive grip. It provides immediate adhesion on contact, and maintains a superior long-term bonding. This gray tape is perfect for metal, plastics and some fabrics. TGM-3300's pressure sensitive properties allow a fast, clean and easy application.
Size: 2'x50'
Click here for specifications and details
Polyken 225FR Tape 2" x 60yds It's Fire/Flame Retardant!
Polyken 225 FR is a superior flame retardant polyethylene coated waterproof tape with an exceptionally aggressive adhesive to a variety of substrates including steel and plastic.
Click here for 225 FR Tape Details
Vapor Tape-Heavy Duty, Weather resistant
This white single-sided tape combines a heavy duty, weather-resistant polyethylene backing with an aggressive rubber adhesive. It provides excellent seaming strength for vapor retarder, cover, and liner applications.
|
Test
|
Typical Value
|
Typical Value
Metic
|
Test method
|
|
Total thickness
|
8 mils
|
203.20
|
ASTM D 1000
|
|
Adhesion to Steel
|
60 oz./in.
|
6.57 N/cm
|
PSTC-1
|
|
Adhesion to Backing
|
22 oz./in
|
2.42 N/cm
|
PSTC-1
|
|
Tensile Strength
|
23 lb./in.
|
40.28 N/cm
|
ASTM D 1000
|
|
Maximum Performance Temperature
|
180 D F
|
|
|
|
MVTR (96% RH, 100°F)
|
0.119 Perms
|
|
ASTM D-3833
|
|
E longation (%)
|
90 %
|
|
|
|
Tack (Rolling Ball)
|
2.25”
|
|
|
|
Minimum Application Temp
|
30°
|
|
|
Polyken 268 Black FR(Flame Retardant) Tape 2" x 100'
Polyken 268 black FR tape is a medium adhesion Black Color Tape, General-duty, Low chance of adhesive residue on surface when tape is removed.
Click here for Polyken 268 Tape

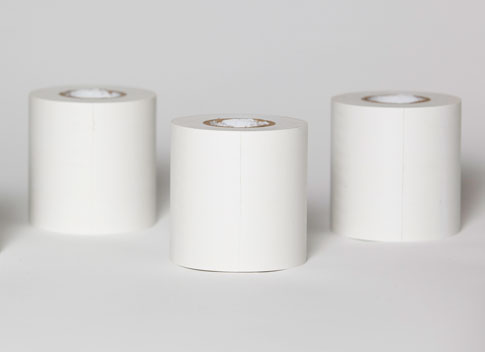

Global CFRP Tape 3"x 60' Black or White
The Virtually no residue tape!
Flame retardant PVC Tape- Black, White, Red, and Orange.
Click here for details for Global CFRP Tape
Butyl Seal Tape-the double-sided rubber tape
Butyl seal is a double-sided aggressive reinforced black butyl rubber tape.
Click here for Butyl Seal Tape
Vapor Tape Plus is a single-sided aluminum foil tape with a release liner for ease of installation.
Click here for Vapor Tape Plus Details
This tape can be installed in applications down to 0 degrees F, and up to 180 degrees F! Virtually residue free, and adheres over the widest temperature range of any tape we know on the market today.
Click here for GLobal TR-6015-1
Canvex Seal Tape
Canvex Seal Tape is a single-sided white woven tape that contains an acrylic adhesive with a release liner. It has excellent adhesion to polyethylene and the acrylic adhesive provides much longer life than many competitive tapes. It is recommended for taping the seams on in-wall vapor retarders and crawl spaces.
Available in a 4" x 100' roll.
R25B Tape
R25B Tape is a single sided aggressive synthetic elastomeric adhesive that bonds instantly to properly prepared polyethylene and polypropylene.
Click here for R25B Tape Details
