The geosynthetic industry has critical needs for its varying applications.Protecting the environment from petroleum products, hydrocarbons, saltwater, fuel, manuer and acids requires a secondary containment liner that will endure these harsh substances.A secondary containment must be a liquid-tight barrier that will contain hazardous materials that are released from a storage container. Please reveiw the liners below to determine the best liner material for your secondary containment needs.
Global Plastic Sheeting can meet your requirements from gas barriers, liquid containment, reserve pit liners to long term covering applications. Thicknesses range from 6 mil reinforced and non reinforced materials up to 80 mil thick. If your need a containment liner, landfill cover, rain shed cover, golf course pond liner or remediation liner and many more, we are here serve your needs.
GPS HDPE 12 mil-80 mil:
GPS HDPE 12 mil is a smooth, high quality, high density polyethylene (HDPE) geomembrane produced from specially formulated, virgin polyethylene resin. Designed for flexible geomembrane applications.
- Excellent chemical resistance
- Outstanding stress crack resistance
- Lowest permeability
- History of proven performance
- Meet or exceed all aspects of GRI GM 13 (Geosynthetic Research Institute)
Click here for GPS HDPE 12 mil
Click here for GPS HDPE 20 mil
Click here for GPS HDPE 30 mil
Click here for GPS HDPE 40 mil
Click here for GPS HDPE 60 mil
Click here for GPS HDPE 80 mil
Roll Sizes: Custom. Please note that "custom" does not necessarily mean a higher cost.
Introducing, Dura-Skrim Textured K-Series-Steeper slope designs and slope stability in a textured reinforced membrane
Dura-Skrim Textured K-Series is a new geomembrane product specifically engineered for the geosynthetic industry. It is designed for applications requiring exceptional slope stability. Applications include mining leach pads, containment ponds, reserve pit, landfill caps to name a few. Dura-Skrim Textured K-Series is a unique textured reinforced geomembrane available in flexible polypropylene or polyethylene. It is the first of its kind in the industry. Dura-Skrim Textured K-Series utilizes a "Geo-Grip" surface technology consisting of a durable random spike pattern with bidirectional bars providing uniform stabilization and an increased friction between various geosynthetic layers and soils allowing for steeper slope designs.
Click here for additional information.
XR-5: Oil Containment Liner with 10 yr warranty
Our heavy plastic sheeting membranes are highly resistant and non-degradable with extreme puncture and tear resistance, as well as dimensional stability under high loads and temperature fluctuations. All XR Geomembrane products are classified as an Ethylene Interpolymer Alloy (EIA). They are very stable, with low thermal expansion and contraction properties and come in factory panels over 15,000 square feet (1400 square meters) for less field seaming. Specified worldwide for projects including floating covers, tank farms, wastewater impoundments, landfill liners and potable water applications, XR Geomembranes are capable of performing in the harshest possible environments.
XR-5 geomembrane is UV resistant, has a coefficient of thermal expansion 1/20th of polyethylene, and has an extremely high yield tensile strength. After more than 20 years in the most difficult applications around the world, XR-5 is recognized as the first choice material in a countless number of projects.
XR-5 30 mil thick is significantly stronger than 100 mil HDPE. XR-5 is a synthetic reinforced geomembrane that provides high strength at a minimum thickness!
Click here for more information
GPS RRP: Reinforced Polypropylene
GPS RRP (Reinforced Polypropylene) liners have excellent tear resistant qualities. It is highly chemically resistant and has a 20 year U.V. exposure and weathering warranty. GPS RRP can be heat seamed together to meet large panel applications. It can then be rolled up and folded for ease of shipping.
GPS RRP comes in a 36 mil Black and Tan liner as well as a 45 mil Black and Tan version.
Click here for data on Reinforced Polypropylene

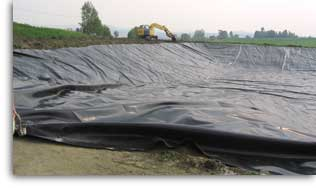

Rufco E-Series-15 & 30 mil LLDPE
Extruded (Multi-Layer) Rufco® E-Series is a multi-layer, coextruded, metallocene and linear low density polyethylene geomembrane with an anti-skid surface on both sides.
Click here for details and photo
Rufco 10 Series- Heavy Plastic Sheeting -6 mil to 20 mil
Extruded (Mono-Layer)
Mono-layer blended, Rufco 10 Series membranes consist of medium-density polyethylene. Thicknesses from 6 mil up to 20 mil and win widths up to 200' wide or up to 90,000 square-foot panels.
Rufco 1000 Series-Shrimp & Fish Ponds, Waste Water Ponds, Leachate Collection Ponds
Extruded (Mono-Layer) Rufco 1000 Series is a very flexible geomembrane.
Rufco PP Series-Canal Linings,Fish Hatcheries, Fire Ponds
Extruded (Mono-Layer)
Rufco PP Series products are exceptionally flexible geomembranes that incorporate high levels of ethylene propylene rubber into polypropylene. Thickness in 30 and 40 mil, and in panels up to 33,000 feet. These membranes provide outstanding resistance to environmental stress cracking even at elevated temperatures and in aggressive chemical environments.
DURASKRIM 20WW
consists of virgin outer layers of white high-strength polyethylene film laminated together with a black layer of molten polyethylene. Both outer layers contain UV inhibitors and thermal stabilizers to assure long outdoor life. The white layers are designed to reduce heat build up and condensation, and to provide excellent dimensional stability. A layer of polyester scrim reinforcement placed between these plies greatly enhances tear resistance and increases service life. DURASKRIM's heavy-duty diamond reinforcement responds to tears immediately by surrounding and stopping the tear.
COMMON APPLICATIONS
- Modular Tank Liners
- Daily Land_ll Covers
- Remediation Liners
- Earthen Liners
- Interim Landfill Caps
- Shrimp & Fish Ponds
- Remediation Covers
- Erosion Control Covers
- Vapor Retarders
