Enkadrain 9010- A Drainage Product for Planters, Playgrounds and Zoos
Enkadrain 9010 is a drainage product made from a Nylon core of fused, entangled filaments and a geotextile fabric bonded to one side.
Features and Benefits of Enkadrain 9010:
- Excellent durability
- Conforms to irregular surfaces and corners with complete and effective coverage
- Long rolls allow for reduced installation costs by eliminating interlocking and excessive seams
- Continuous drain flow even under high loads
Roof Gradient |
Problems |
Solutions |
Low 1-5° (2-9% ) |
· Sufficient fall to drain · Few ponded area may exist · No major drainage concerns |
· Use regular profile Enkadrains (0.4”) to effectively convey runoff to roof drains
|
Additional Options for Enkadrains on Sloped Green Roofs

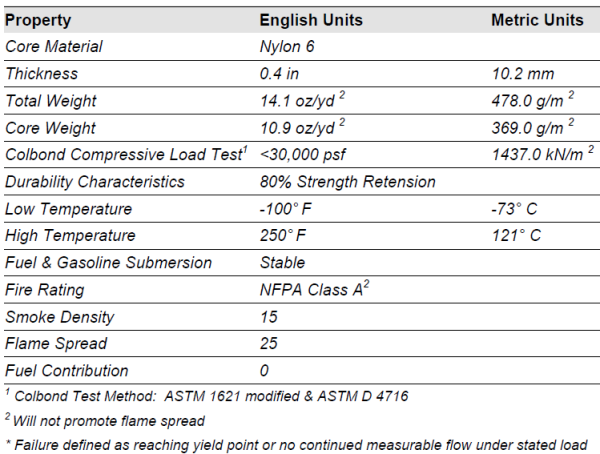

Technical Data - Physical Properties

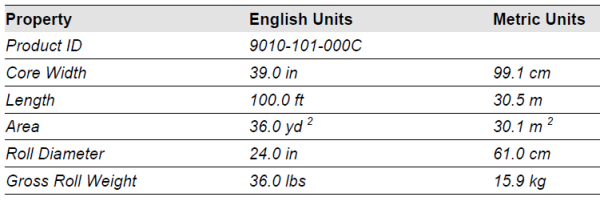

Packaging Properties

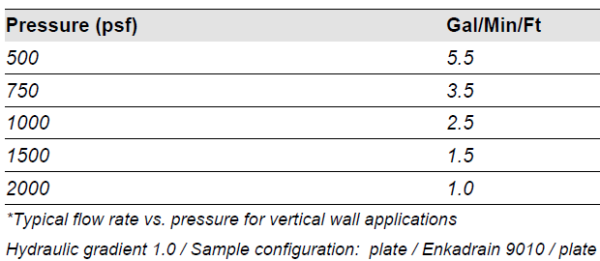

Flow Rates of Enkadrain 9010:

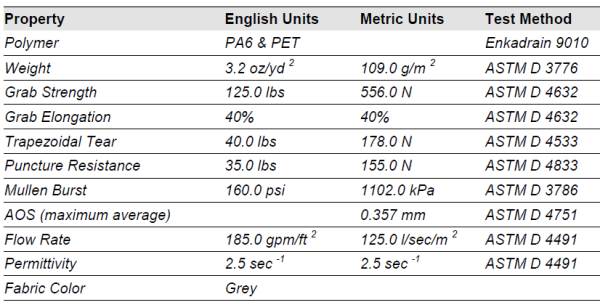

Properties
To the best of our knowledge, the information contained herein is accurate. GPS cannot assume any liability whatsoever for the accuracy or completeness thereof. It is the responsibility of the user to determine the suitability of any information or material for the use contemplated and its manner of use.
